Professional High Power Industrial Fume Extractor for Air Filtration Systems

چین Guangzhou EPT Environmental Protection Technology Co.,Ltd گواهینامه ها
چین Guangzhou EPT Environmental Protection Technology Co.,Ltd گواهینامه ها
Very appreciate for your professional service & higher standard quality control,very happy to know you.

—— Mr Johnifere

We trust the quality of your products. It always the best. Keep this going, and we will establish a long-term trade relationship with you.

—— Mr Zero

Awesome quality and very good after sale service.

—— David

چت IM آنلاین در حال حاضر

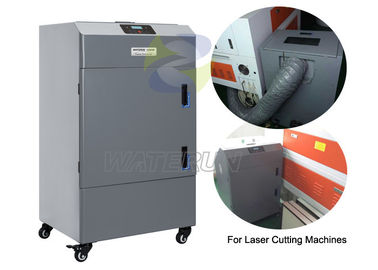

Professional High Power Industrial Fume Extractor for Air Filtration Systems

Professional High Power Industrial Fume Extractor for Air Filtration Systems
Professional High Power Industrial Fume Extractor for Air Filtration Systems

تصویر بزرگ :  Professional High Power Industrial Fume Extractor for Air Filtration Systems

جزئیات محصول:

Place of Origin: China
نام تجاری: Waterun
گواهی: CE/ROHS/SGS
Model Number: F5000D

پرداخت:

Minimum Order Quantity: 1 set
قیمت: negotiation
Packaging Details: 65x54x104cm/set, 70kgs
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, western Union or Paypal
Supply Ability: 1,000pcs per month
توضیحات محصول جزئیات
Type: Welding Fume Extractor Application: remove fumes from electric welding
Filter: PP,glass fiber and active carbon Filter efficiency: 0.3um99.97%
Duct Diameter: Dia.90mm x 1.4m Voltage: 110V-220V
Systemic flow: 500m3/h Advantage: DC Brushless Motor
برجسته:

smoke extractor,industrial smoke eater

,

industrial smoke eater


500m3/h Large Systemic Flower Industrial Air filtration Systems


Specifications:

Model Number:

F5000D

Filters Quantity:

pre-filter 5pcs,PP filter 1pc,glass fiber filter 1pc, active carbon filter 4pcs

Voltage/Power:

110-220V, 450W

Systemic Flow:

500m3/h

Filtering Efficiency:

0.3micron 99.97%

Length of Duct:

Dia.90mm x1.4m

Noise:

Less than 70db

Dimensions(mm)

550 x 415 x 920

Net weight

60kgs



Description:

F5000D fume extraction systems effectively remove the fumes generated in many electronics manufacturing processes.Applications include solder smoke removal, reflow ovens, wave soldering, plasma cutting, conformal coating fumes and cleaning solvent fumes. These efficient and economical fume extractors are easy to install, reliable and safe.


Features:

  1. Integrated structural design of smoke filtration, easy for installation, mobile flexibly, not requiring a fume suction pipeline.
  2. High-power brushless DC motor, long life, low noise, a large air flow.
  3. Triple fume filtration design ensure to totally filter out hazardous substances, protect the security of human. Initial filter, medium filter and main filter can be replaced individually, to make full use of filters to reduce the production cost.
  4. Built-in smoke filtration cycle design avoid expeling indoor cold/heat air outside.
  5. Multi-position design, adjustable air flow, flexible suction arm adjust freely.
  6. Low noise design
  7. Single or Double-station design, adjustable air flow, directional air control adjustment, positioning with ease.


Attention



  • Don't block air inlet and outlet when using the machine.
  • When replacing filter,please make sure sealing ring, pull clasp, smoking pipe install closely to prevent air leakage.
  • Regular checking and replacing pre-filter,middle filter and main filter to avoid purifier blockage then cause equipment damage.
  • Please use the original filters and accessories, to avoid affecting the service life and the purification efficiency of the equipment.
  • Keep the distance between air inlet and smoke source point within 15 cm.
  • Keep smoke hood surrounding air flow velocity in the minimum.
  • Make sure all pull clasp fasten when moving the machine.
  • Don't use the product in high temperature and high humidity, flammable and explosive occasions.


Applications:

Our line of floor, bench top, mounted and portable units serve a variety of applications including welding, soldering, manufacturing, laboratory and pharmaceutical operations. Waterun Technology Co.,Ltd manufacturing a variety of high quality air purification systems for filter the harmful substances. Don’t despair if you don’t see your application listed below. Our modular product line can be configured in a number of different ways to address your specific requirements.Contact us today to find out the solutions!

1.

 soldering fume extractor

2.

 laser cutting, laser engraving and marking

3.

 electronics Manufacturing

4.

 welding, laser welding

5.

 medical, moxibustion, moxa-moxibustion

6.

 beauty fume extraction

7.

 Pharmaceutical and laboratories, chemical

8.

 3D printing

9.

 dust collector



Competitive Advantage:



1. Self-developed impeller, better quality than ordinary plastic impeller, more stable, more powerful suction. The unique tiered filter design, can effectively purify the toxic and harmful substances in the air, such as formaldehyde, benzene, ammonia, radon gas, sulfur dioxide..etc, and use of low cost.

2. Our company uses a brushless motor, compare with the ordinary motor, this motor speed is higher, lower noise, it does not require maintenance, but longer product life span.

3. The products from abroad mainly purify the viruses and bacteria as the main direction of governance. In China not only to purify viruses, bacteria, but also clean harmful smoke pollution. WHO estimates that there are over 200 million people deaths each year due to inhalation of indoor and outdoor air pollution in small particles.

4. Compared with the products from foreign countries, our products in terms of the effect is almost the same, but the majority of our products are less than USD2000, so our products are cost-effective, and the use of more affordable cost.
